5200-4512 3-Wire Pigtail
Details

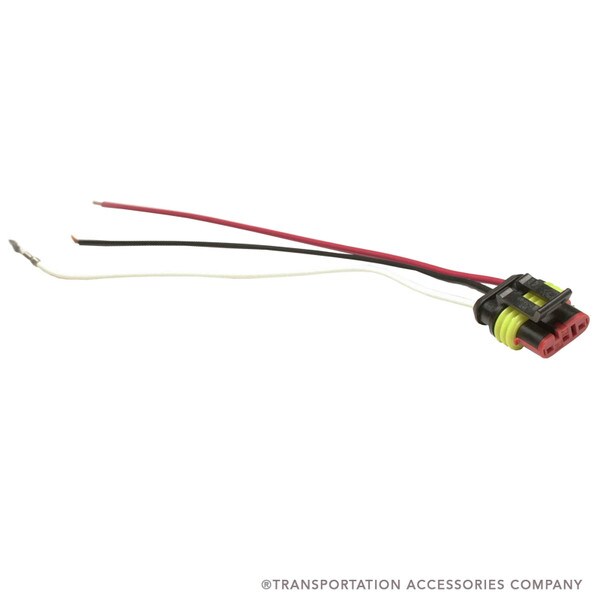

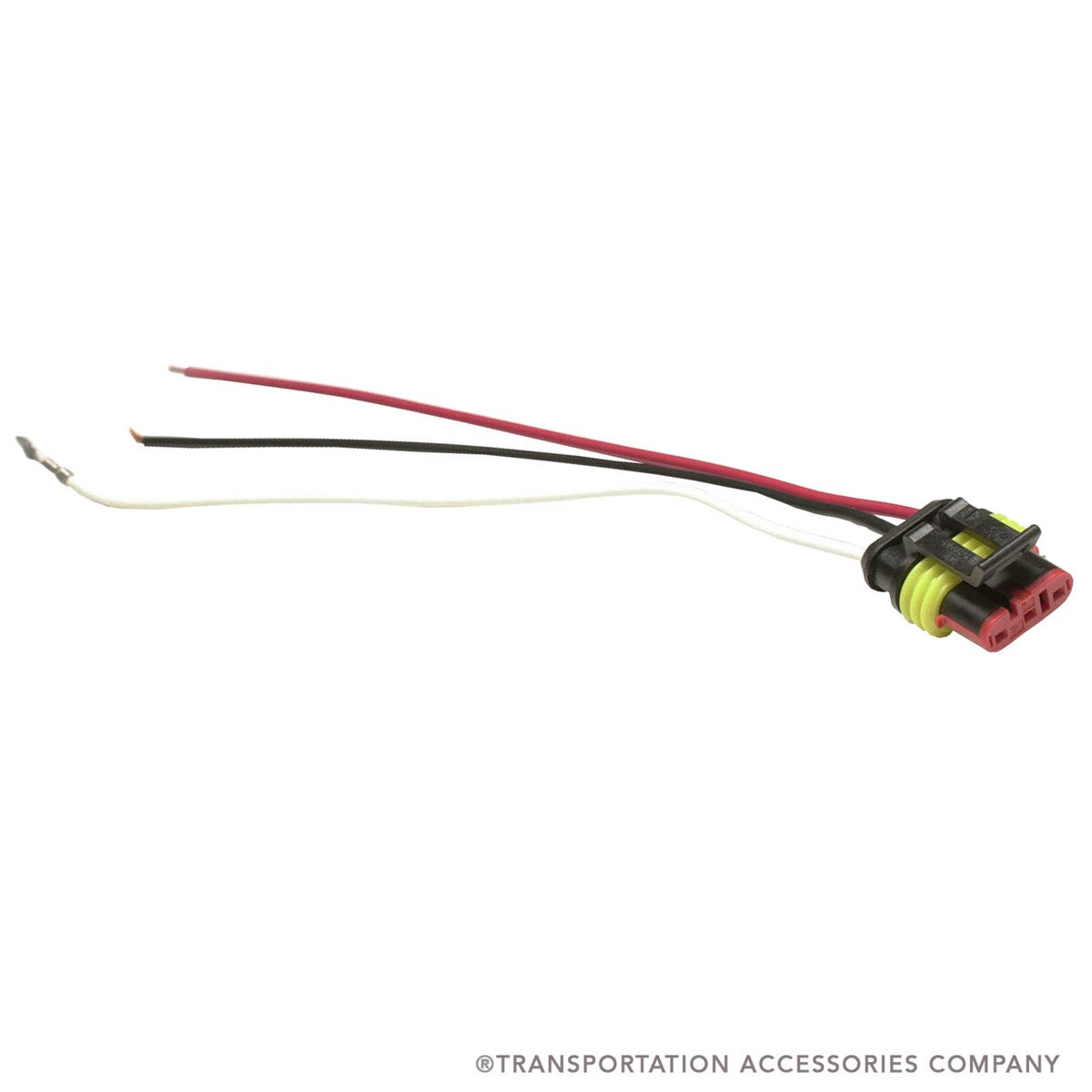

3-Wire pigtail.
Works on newer Thomas applications
Works with Weldon plastic body 1010 Series lights
Can be used for 2 or 3-wire applications - see wiring instructions below.
Works on newer Thomas applications
Works with Weldon plastic body 1010 Series lights
Can be used for 2 or 3-wire applications - see wiring instructions below.
- Wiring for Stop/Tail: White = Ground, Red = Stop, Black = Tail
- Wiring for Backup: White = Ground, Red = Backup (Cut off Black lead).
- Wiring for Turn: White = Ground, Red = Turn (Cut off Black lead).
- Wiring for Turn/Park: White = Ground, Red = Turn, Black = Park.
